INSTALLATIONS

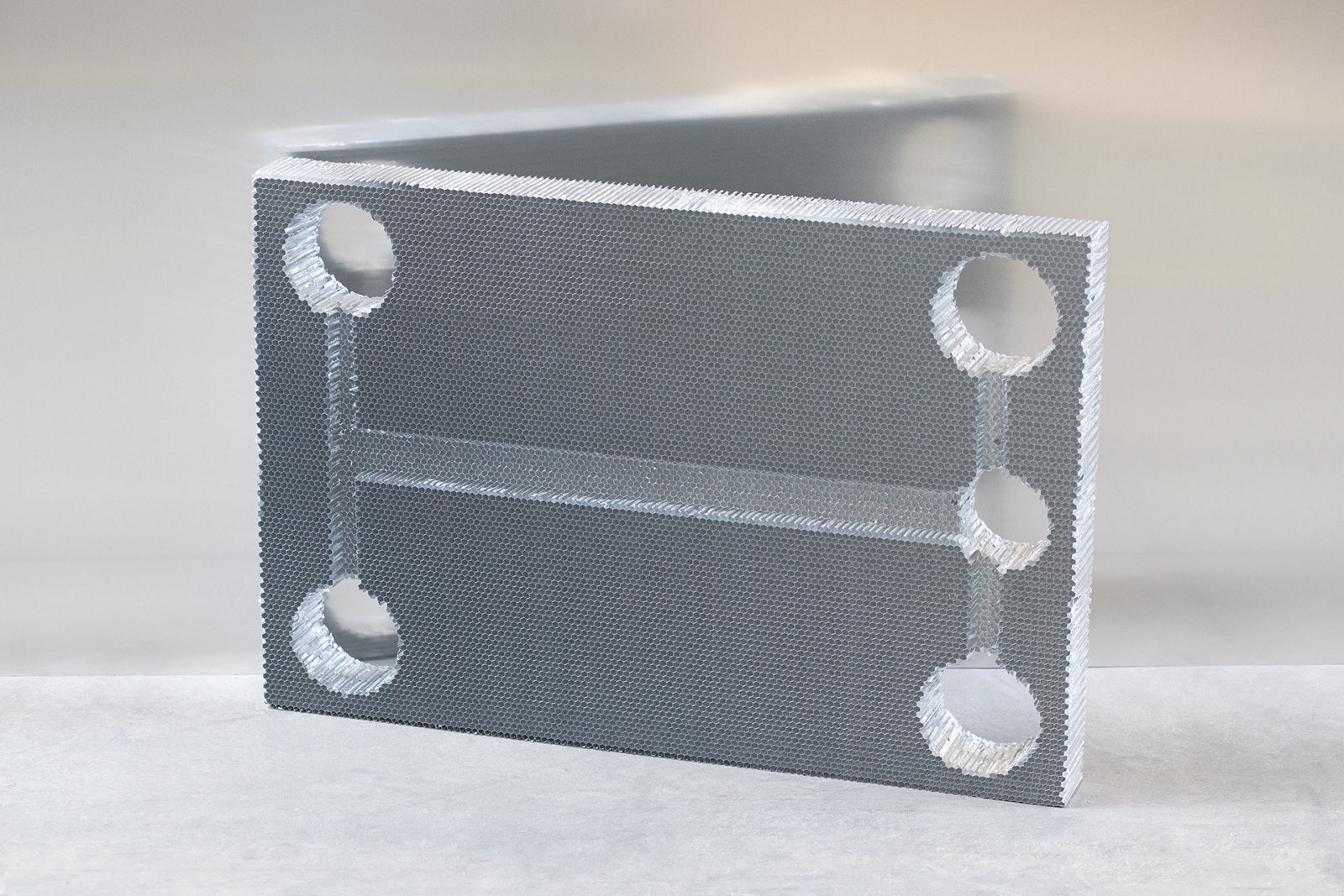

Tailored to the specific application and individual requirements of our customers, we offer a wide range of materials and built-in components. For localized attachment points or areas subject to special stresses, various materials can be specifically integrated into the lightweight panels to ensure maximum stability and functionality.

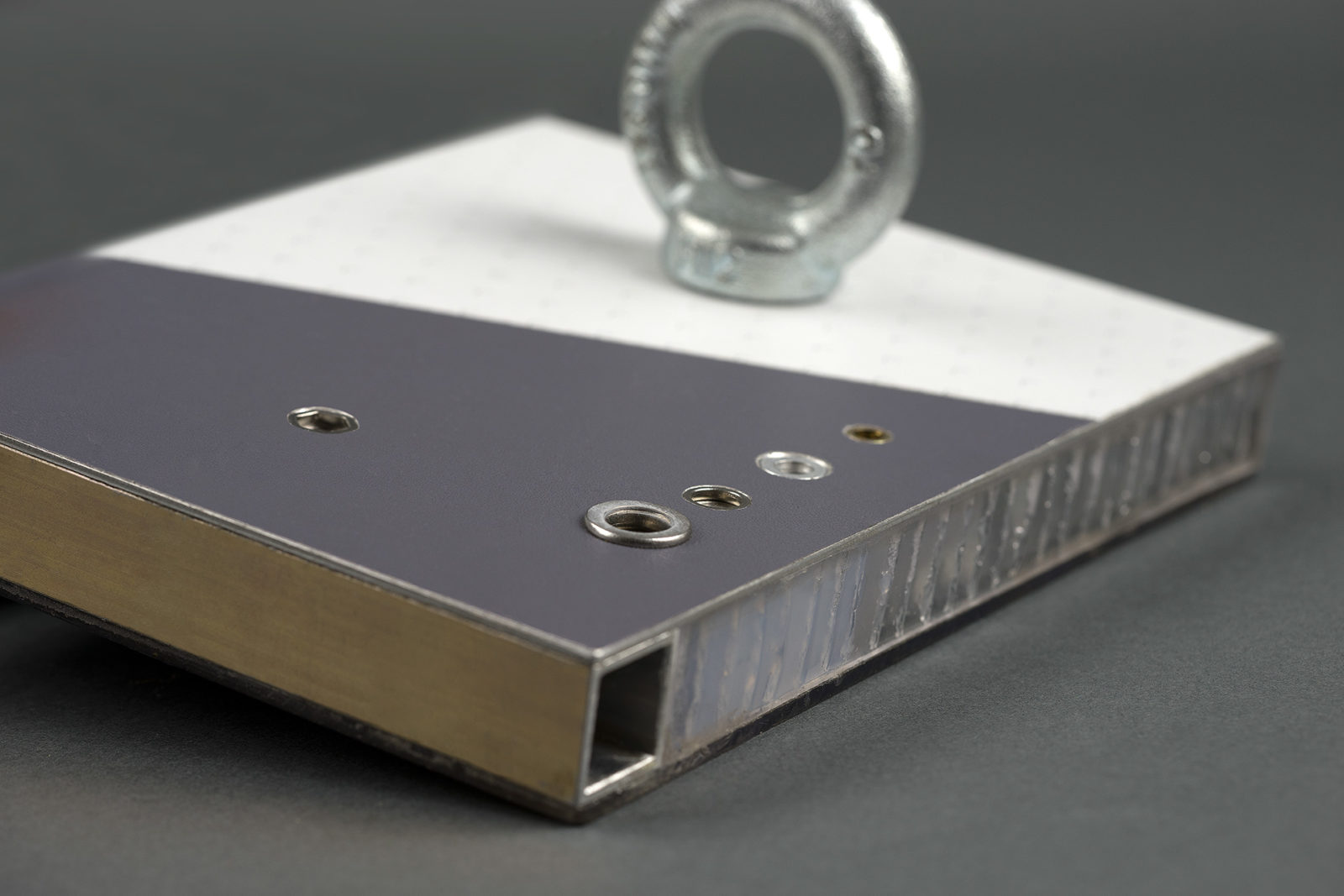

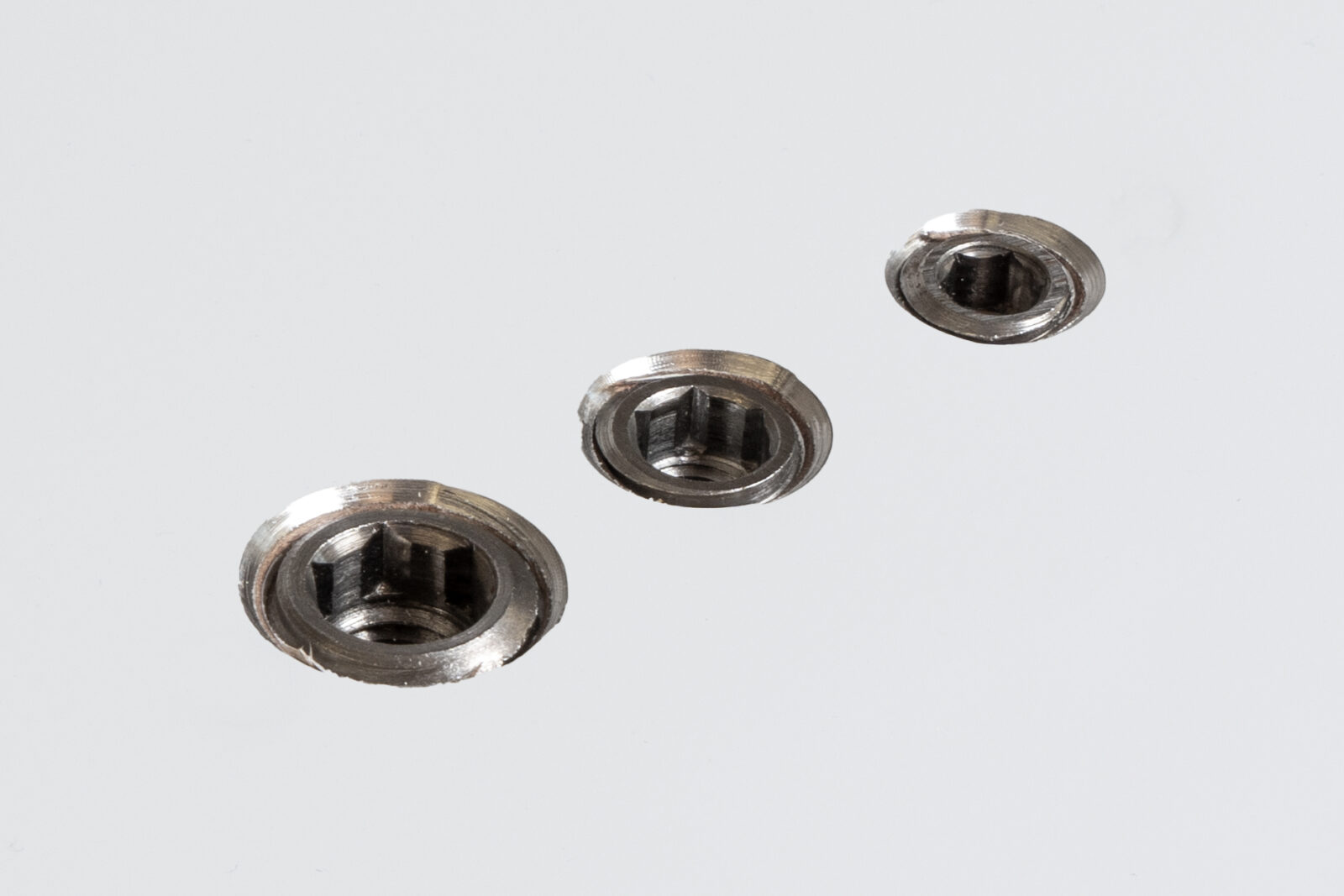

Innovative fastening elements such as threaded inserts, blind rivet nuts, big heads, threaded inserts (Rampamuffen), Helicoils, and rivets are used in the process. Each of these elements offers specific advantages: threaded inserts provide particularly robust fastening, while blind rivet nuts and rivets enable quick and reliable connections. Big heads and Rampamuffen deliver additional stability and are ideal for higher loads. Helicoils create durable and secure thread connections that withstand even intensive use.

By optimally combining these built-in components and materials, customized lightweight panels are created that meet the highest demands for stability, load capacity, and flexibility. In this way, we develop innovative solutions precisely tailored to our customers’ needs.

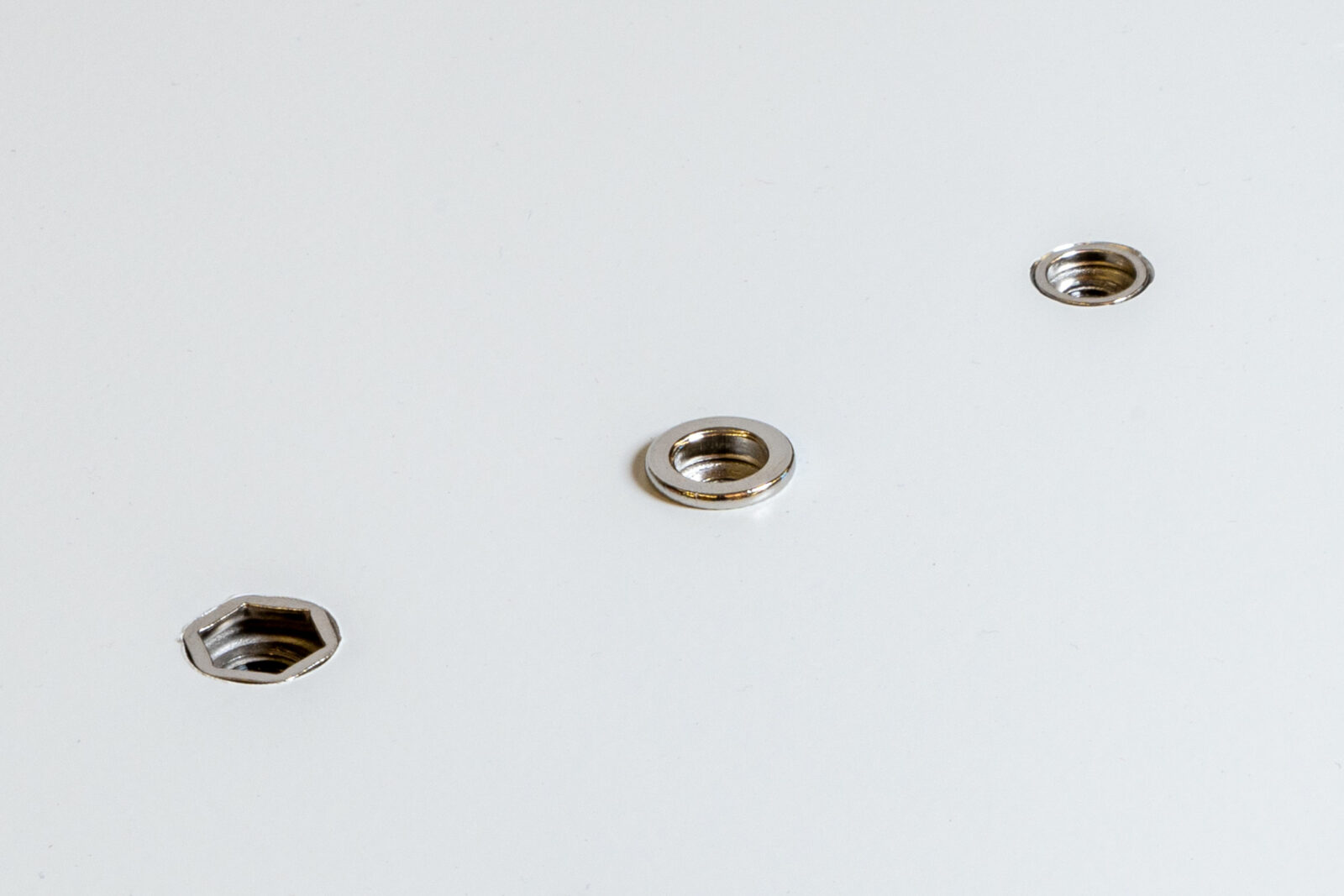

BLIND RIVET NUT

•  Cost-effective

•  Quick installation, also possible retroactively

•  Various flange and insertion types available

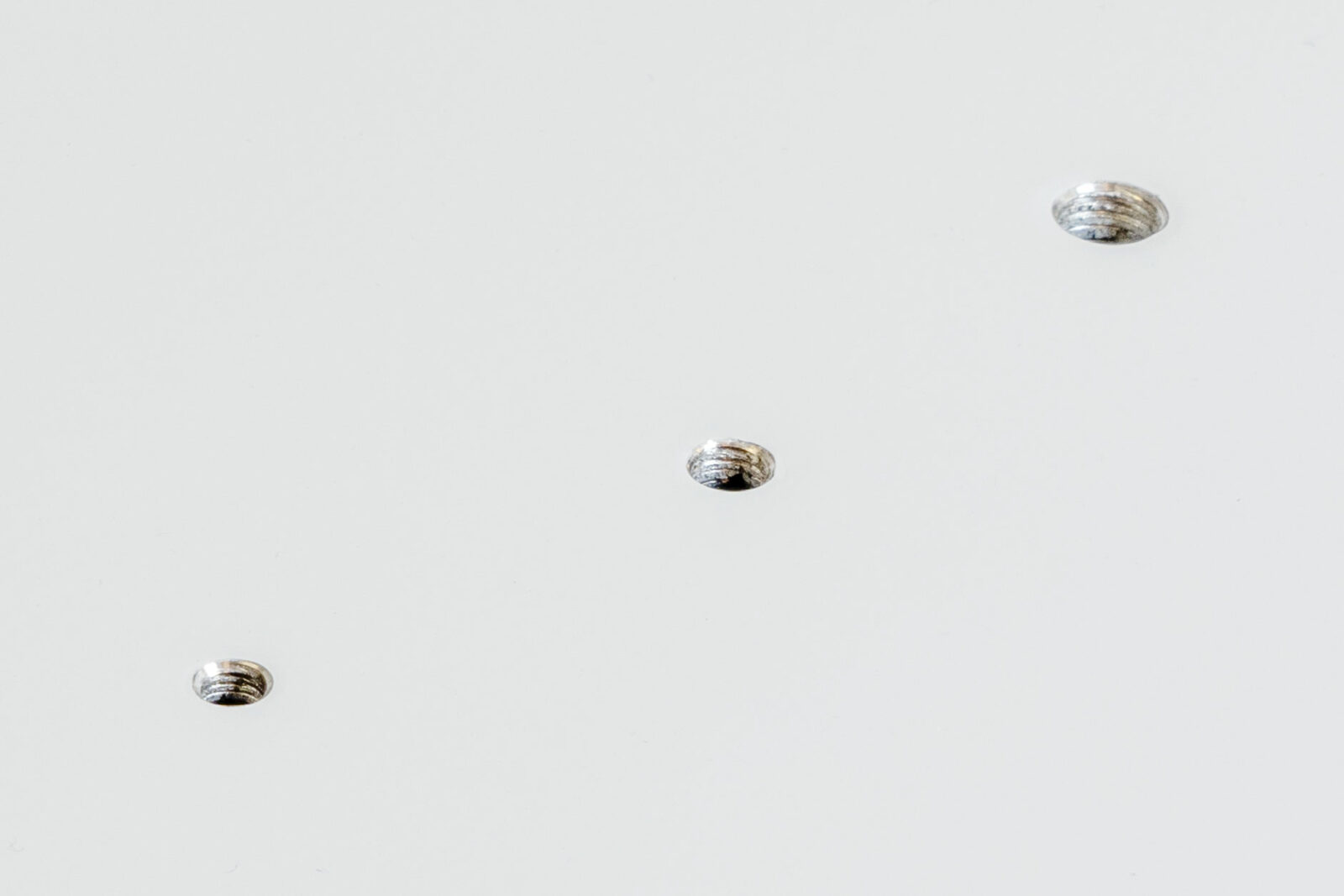

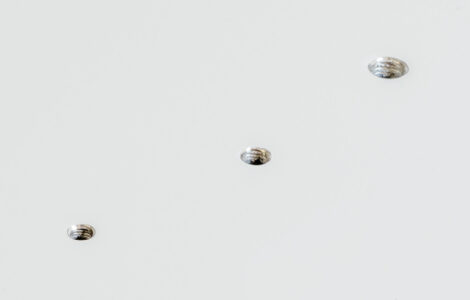

THERMODRILL

•  No additional materials required

•  Not possible to install retroactively

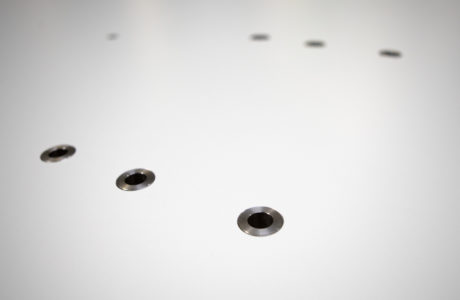

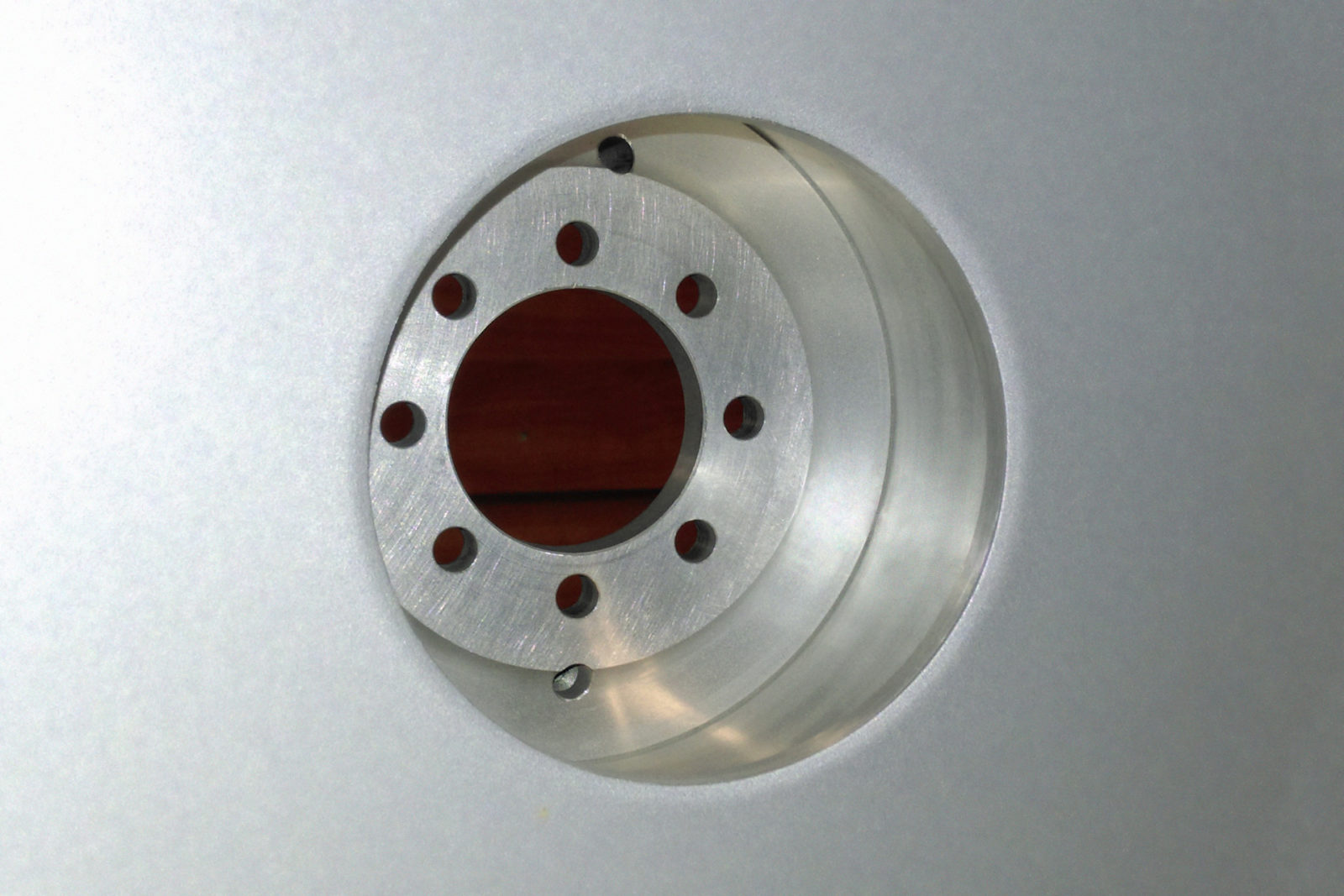

THREADED INSERT

•  Requires solid insert

•  Capable of handling high loads

•  Various flange and insertion types available

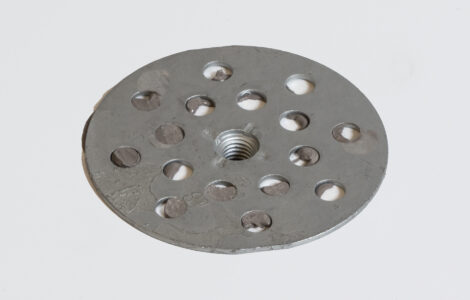

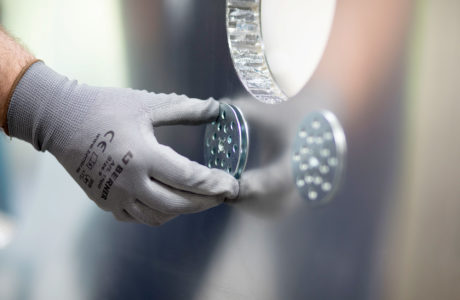

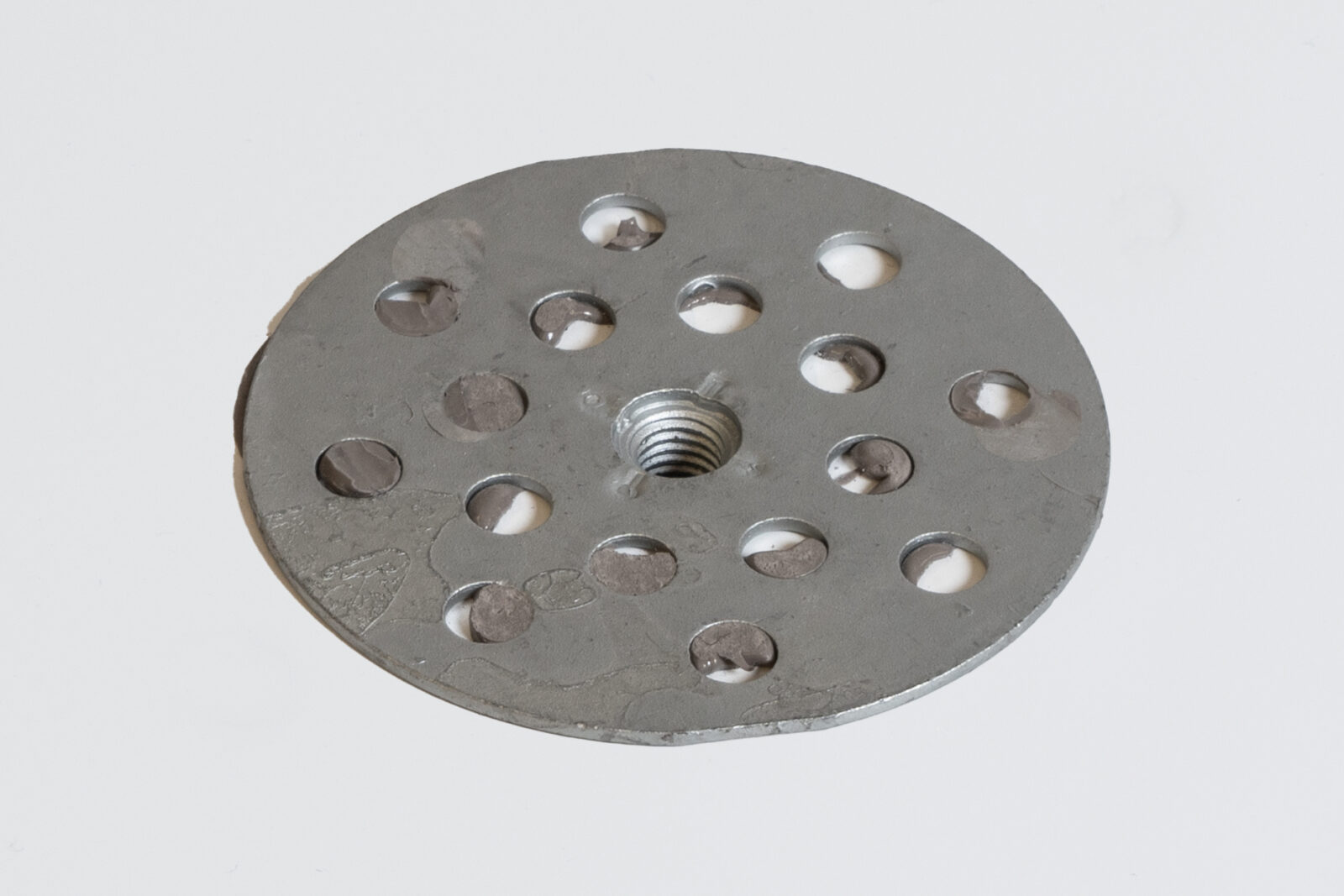

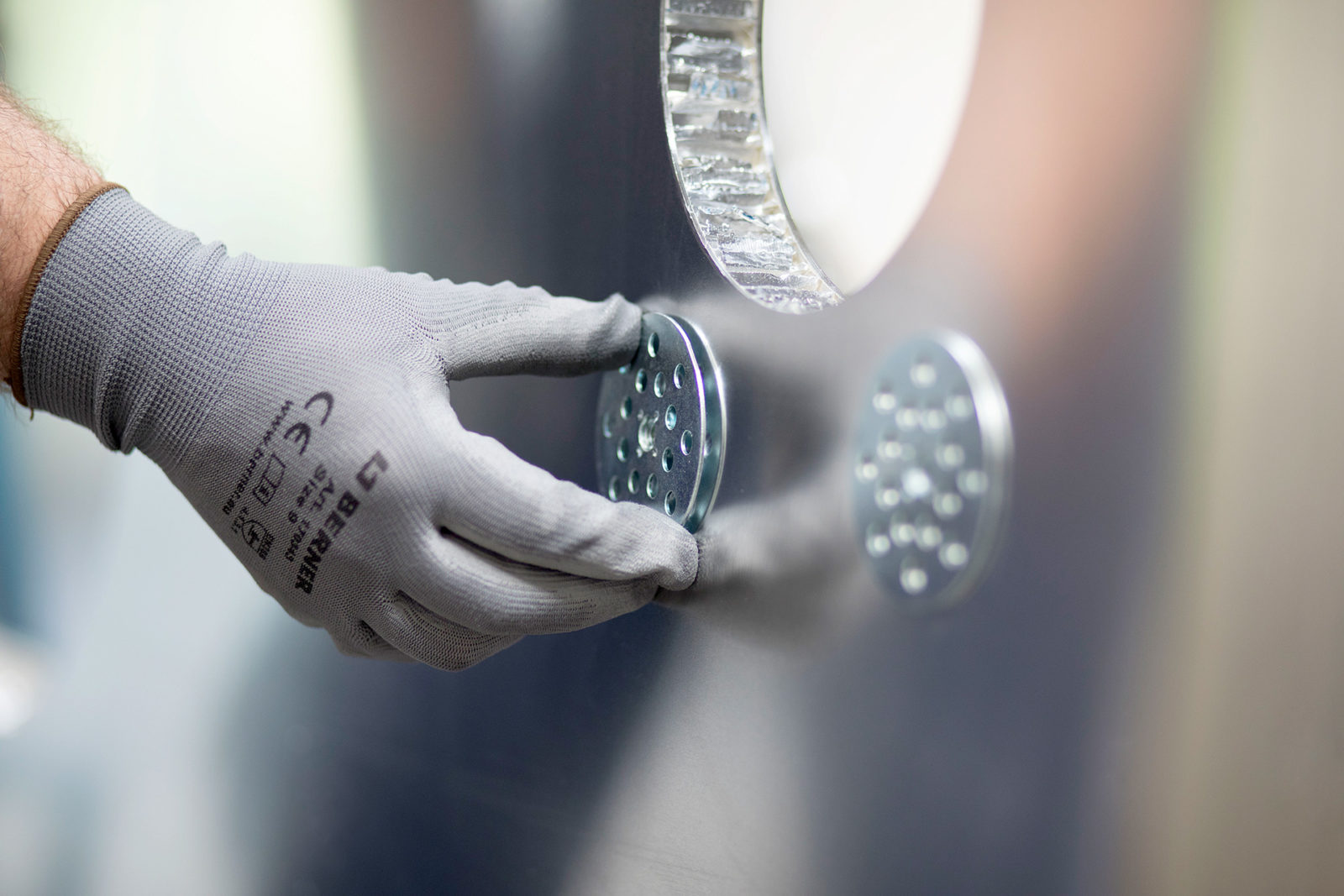

BIG HEAD

•  Capable of handling large loads

•  Various inserts and thread types available

•  Customized inserts available for medium project quantities (approx. 1,000 pcs)

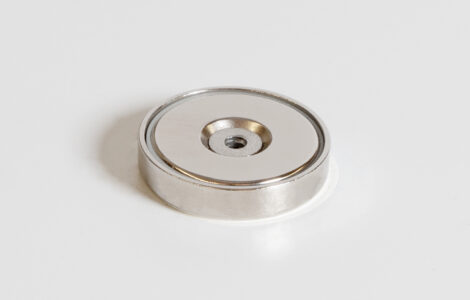

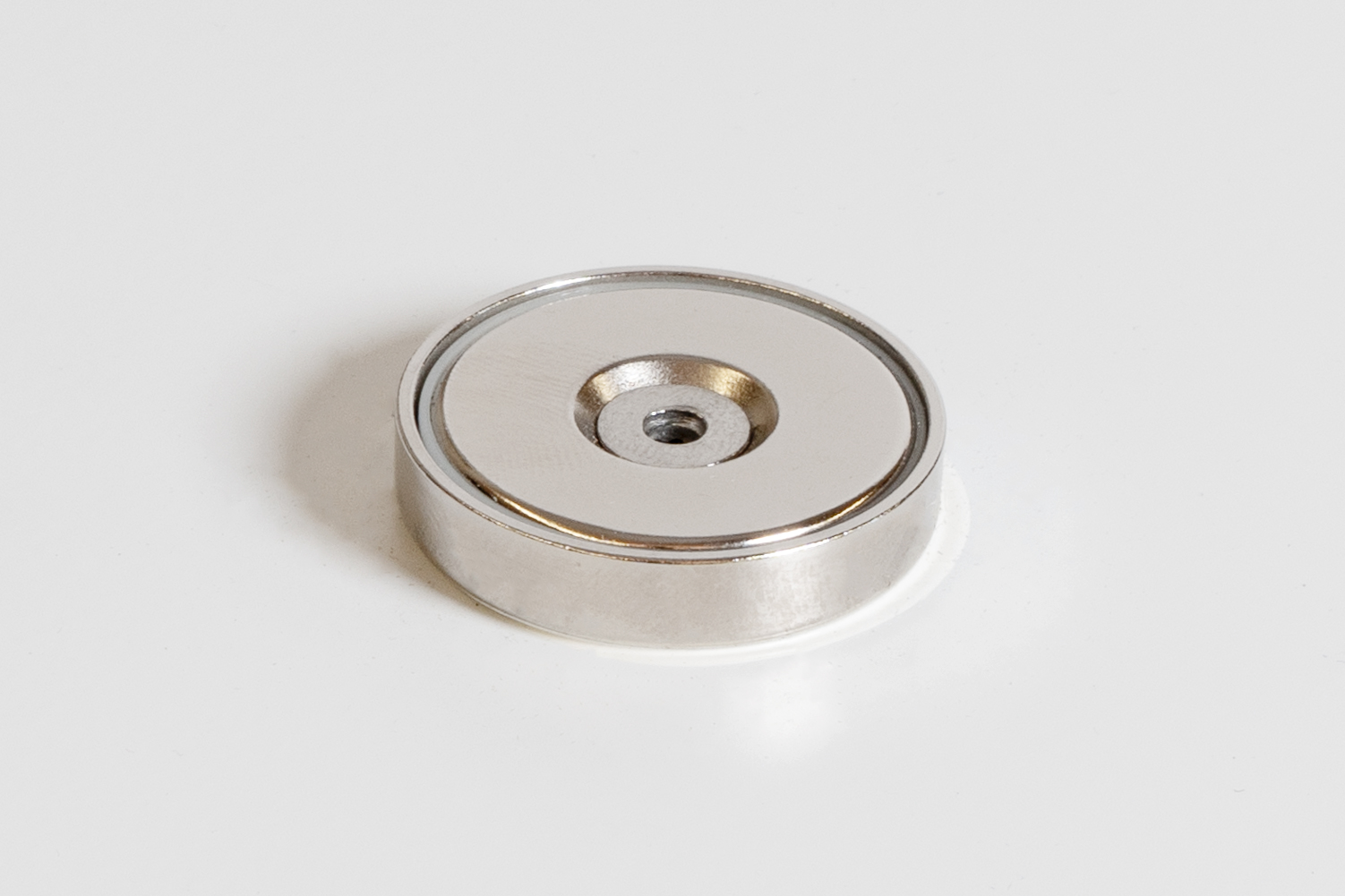

MAGNET

•  Attachment option

•  Suitable for applications such as suspended ceilings, access panels, etc.

HINGE

•  Various hinge options for doors, flaps, and other movable parts in assemblies

•  High precision and durability through CNC pre-fabrication

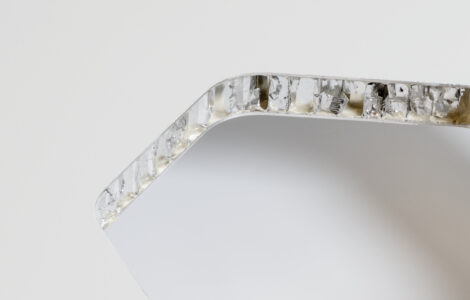

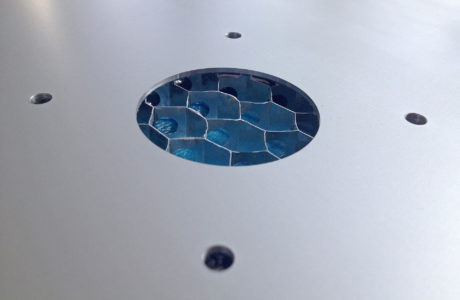

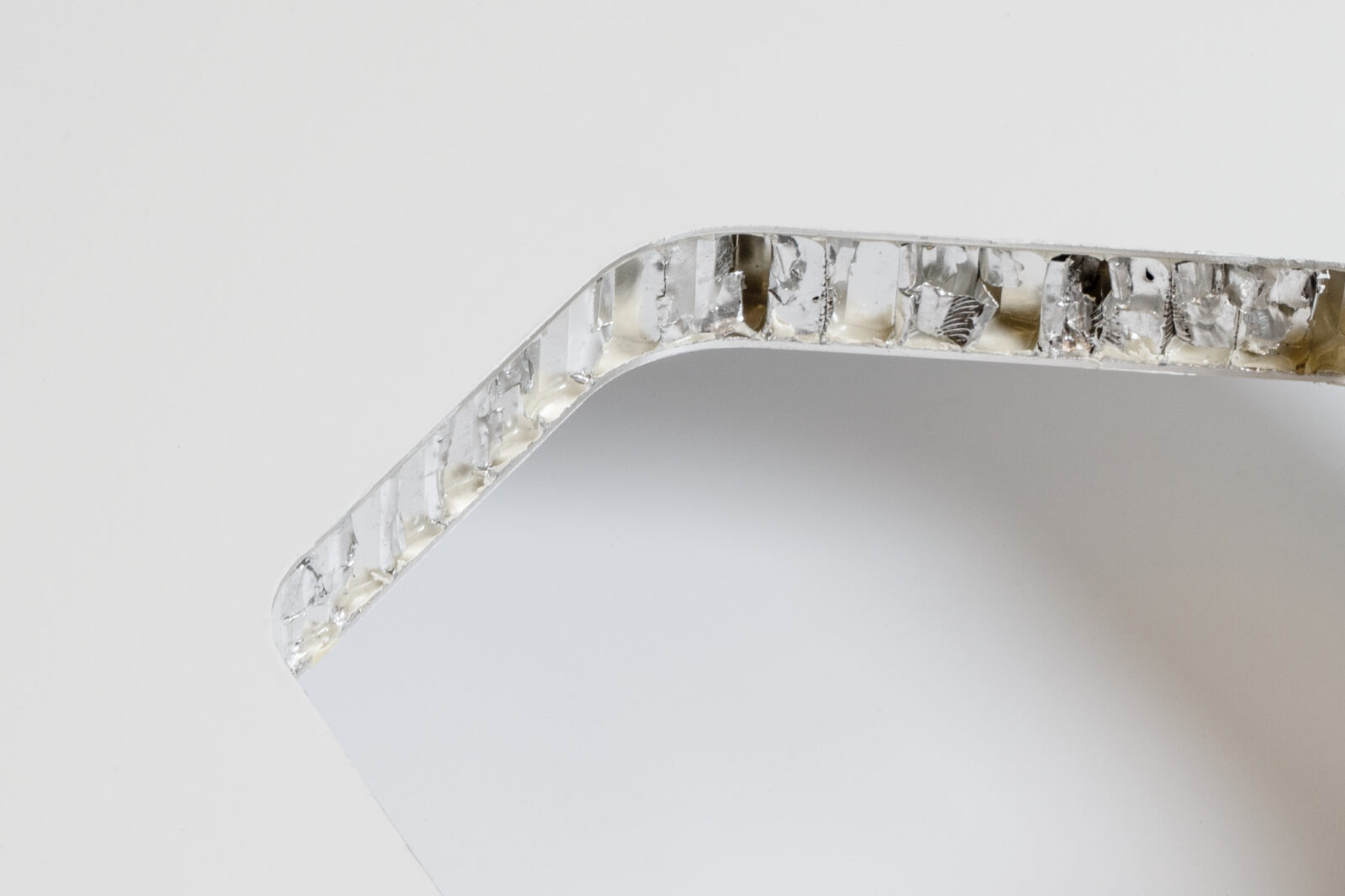

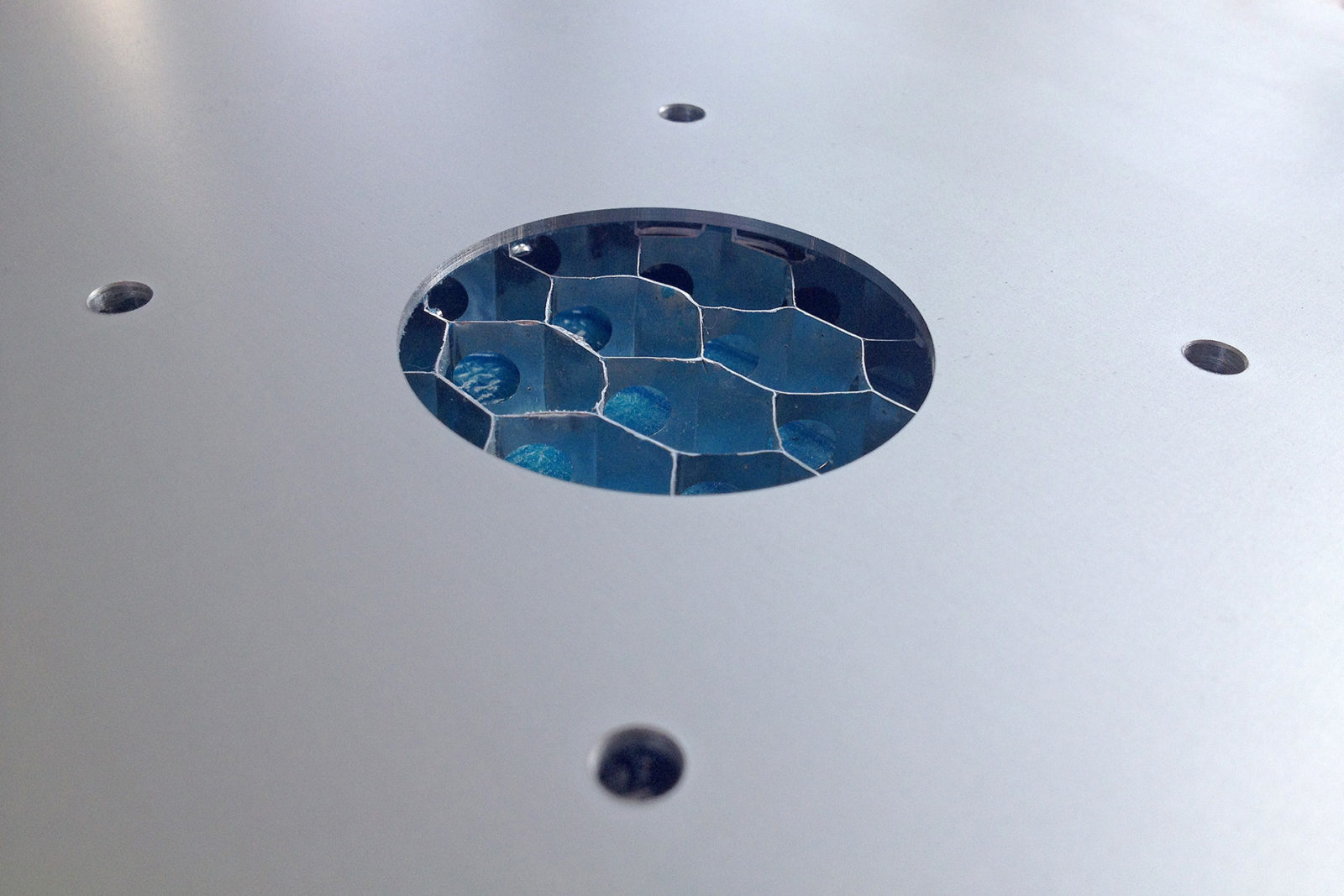

CUTOUT

•  Various geometries possible through CNC machining

•  Due to the sandwich construction or surface framework, even edge cutouts (e.g., for columns) are possible without significant structural weakening

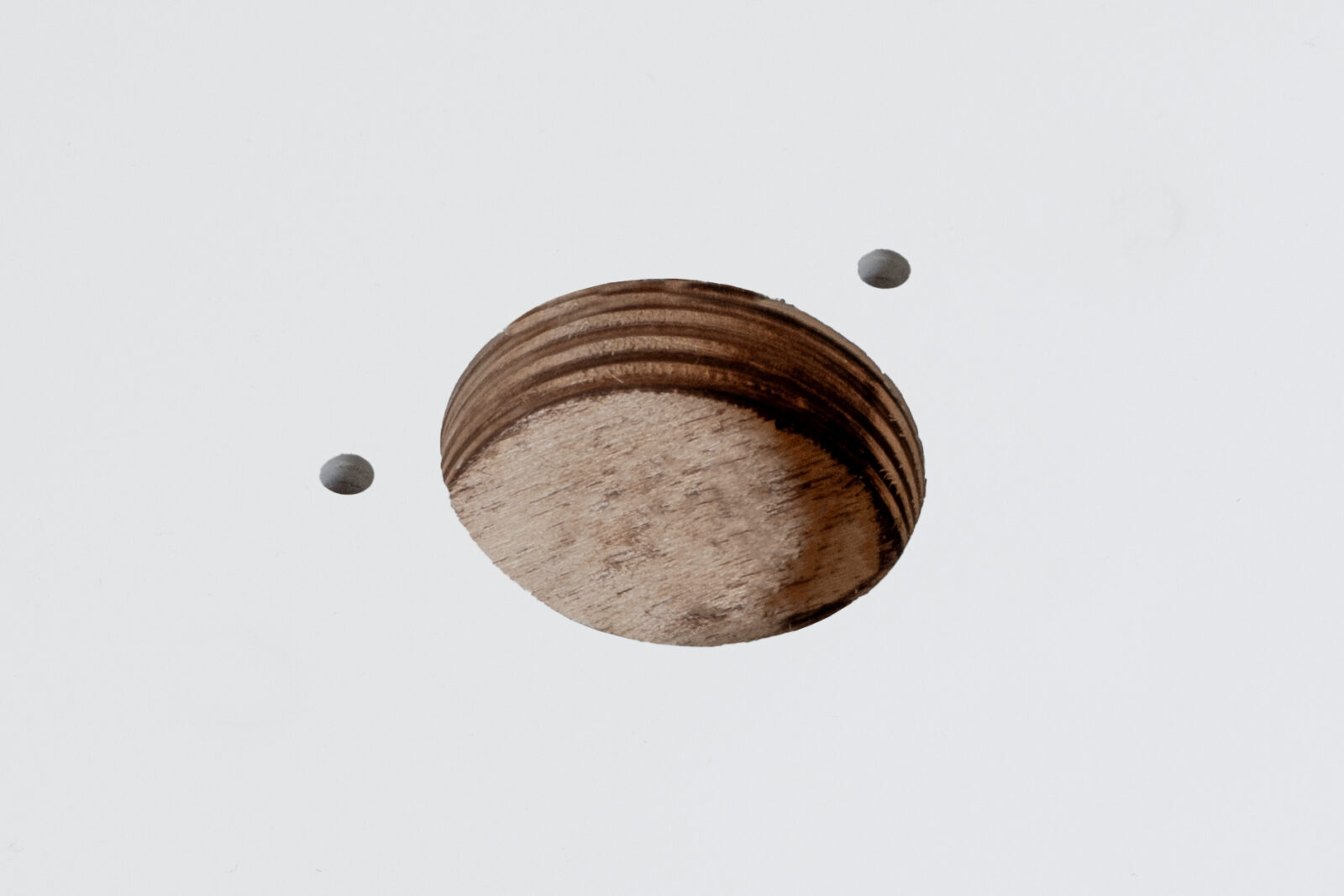

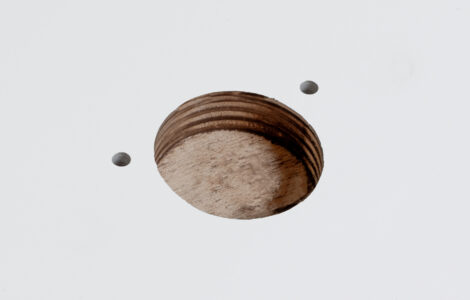

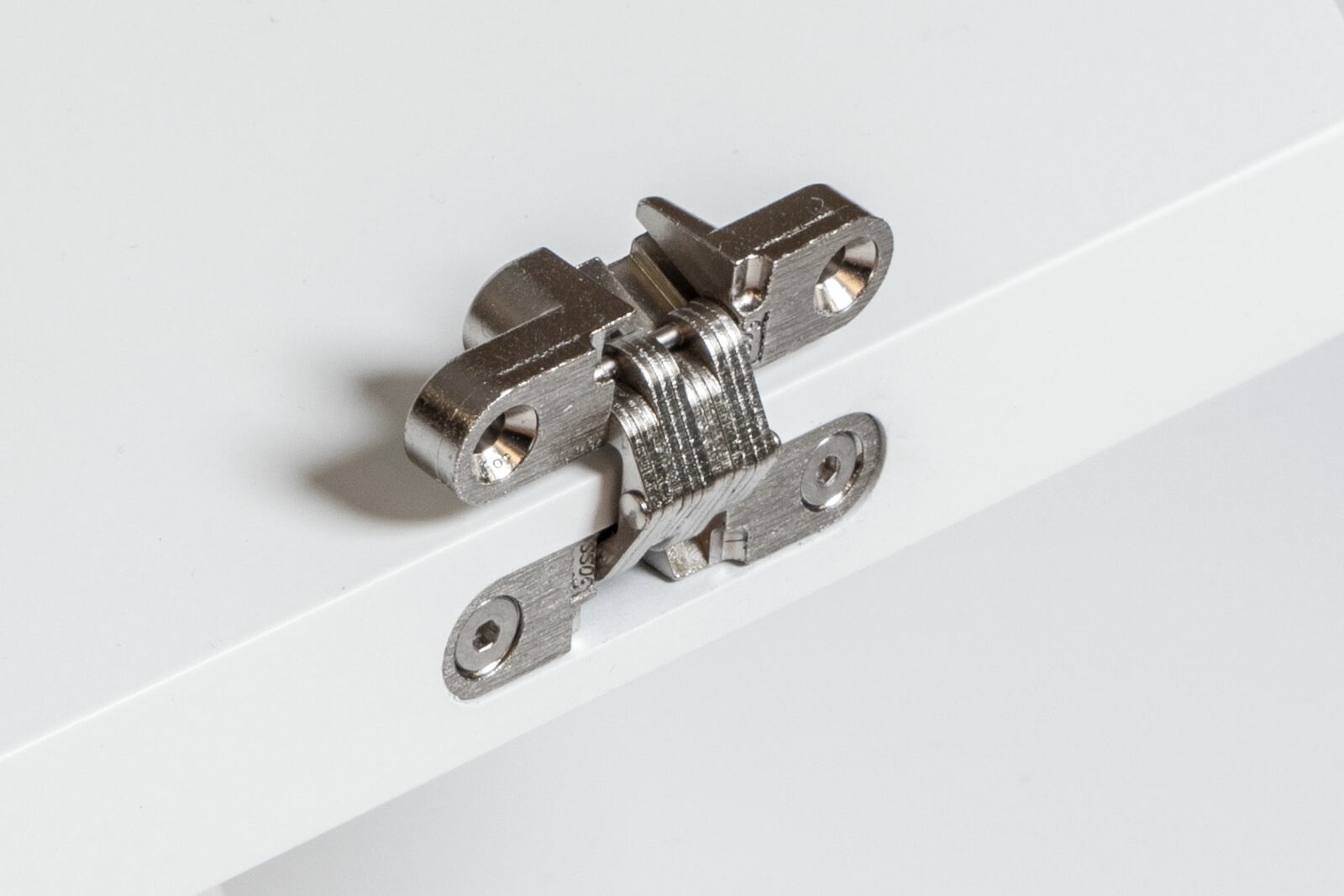

CONCEALED HINGE

•  Suitable for furniture fittings

•  Various options for core reinforcement in the area of the fittings

•  Flexible positioning and design options

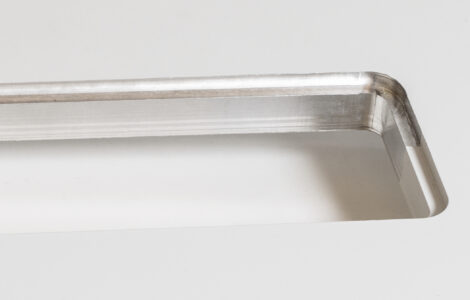

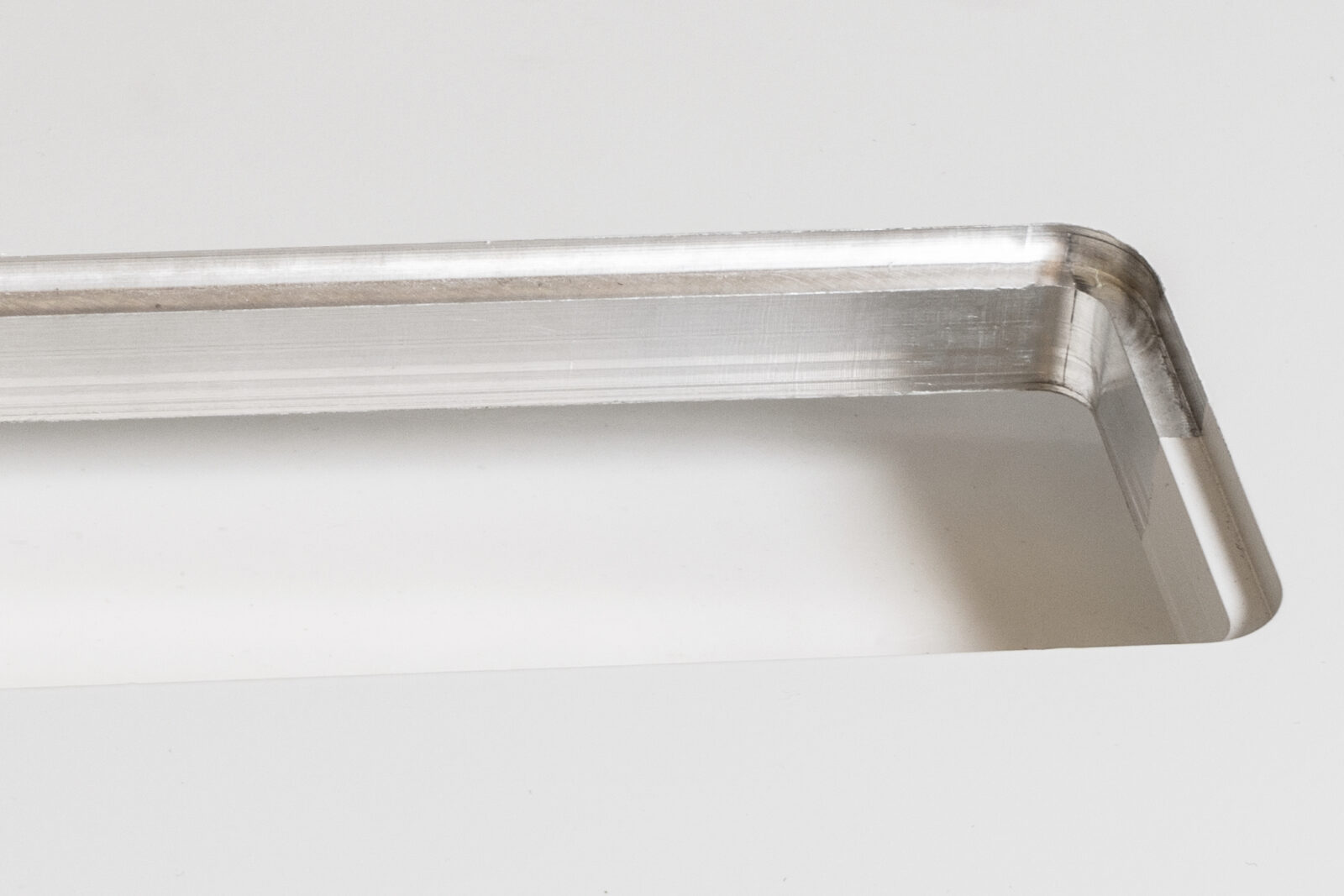

WINDOW STEP

•  Various rebates, grooves, and other geometries and modifications can be flexibly designed



Our TRIPAN lightweight components are applied in many fields, e.g. in architecture, in vehicle construction, in machine construction, etc.
